CCM Crank Arm Removal Tool

Submitted by Biketravel on Sat, 05/20/2023 - 15:22

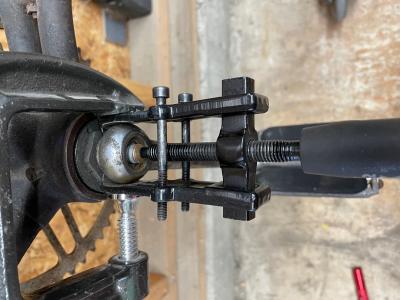

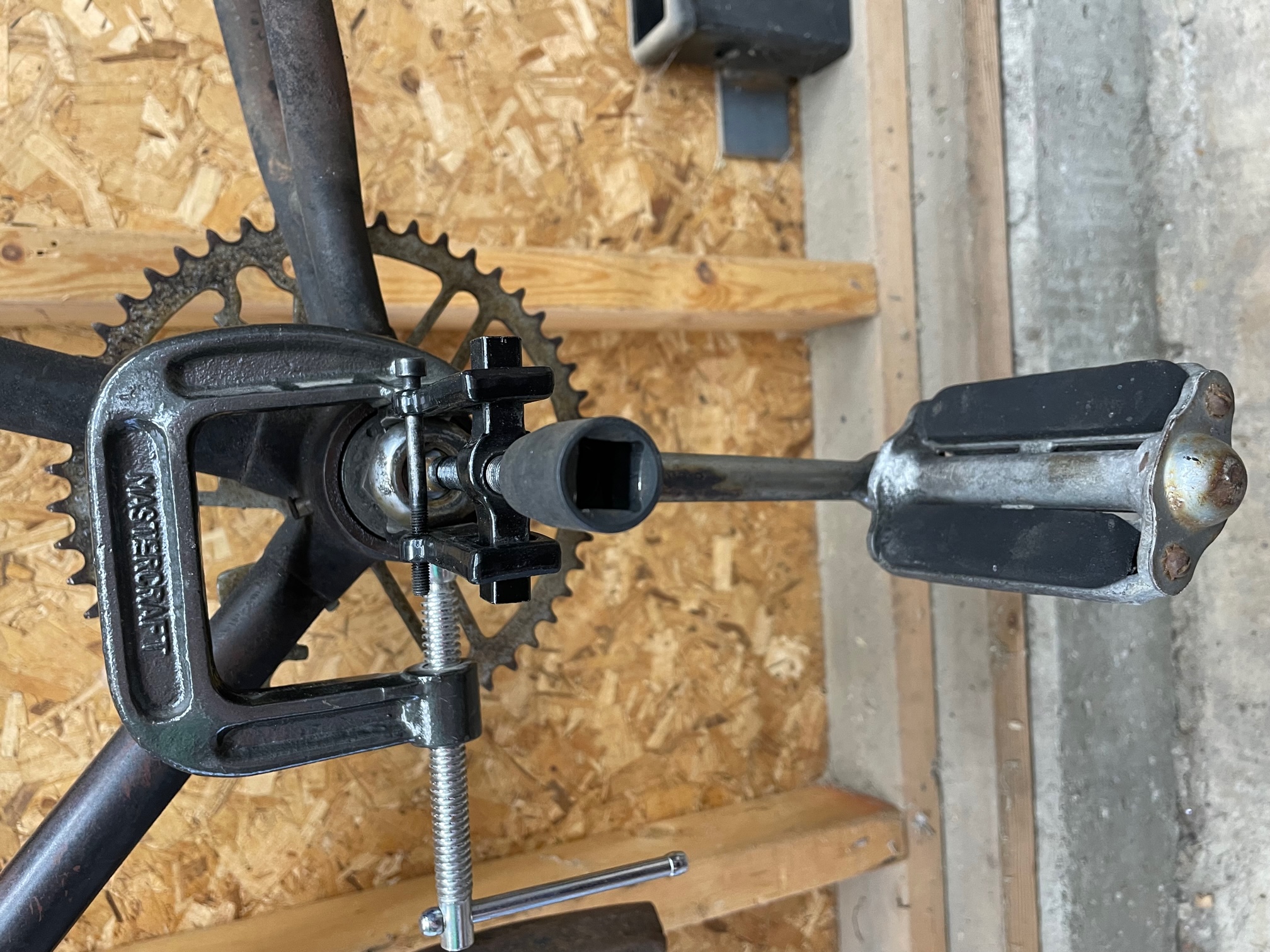

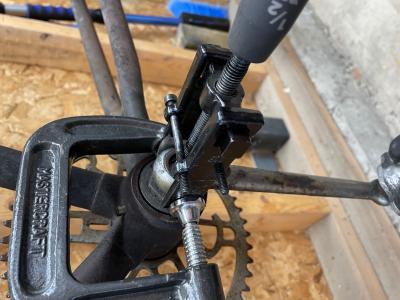

Hello, purchased this puller off Amazon for removal of my crank arms on my 1939 CCM Motorbike. Need to grind them out a little to fit the arm better. Once the fit was right andded a c-clamp to keep in place. Then just used and impact gun to pop them off. Less than 2 min either side! Worked great and I wanted to share.

5 Comments

Submitted by Biketravel on Sat, 05/20/2023 - 15:27.

Here are the pictures. Hope this works this time.

img_7330.jpg img_7336.jpg img_7337.jpg img_7338.jpg

Submitted by DaveCurrie on Sun, 05/21/2023 - 20:44.

That's awesome! Thanks for the share . .. . looks like a ball joint extractor for automotive linkages . . .



I used to remove the jam nuts and ride around the block once . .



Thanks, this is much easier :)





Submitted by Biketravel on Sun, 05/21/2023 - 23:44.

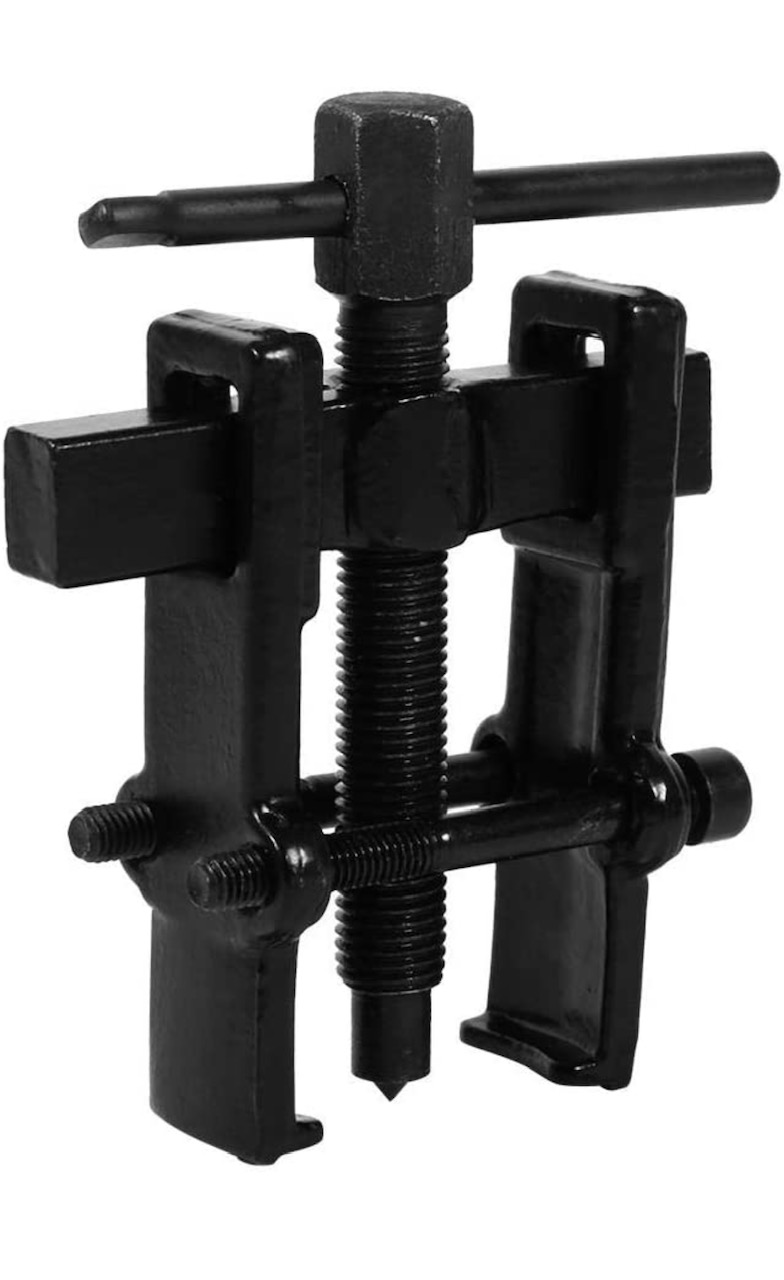

No problem, it's a bearing puller. Worked great! Now if I could just get the extremely stuck stem out.....

Submitted by staceyz on Fri, 07/14/2023 - 17:07.

Nice, what length of arm did you buy, I see there is 2.5", 3", 4" lengths...

Submitted by Biketravel on Sun, 07/16/2023 - 20:20.

The one I have is 3 1/4 length, I think the shorter one would work too. Worked really well!
