Chainring ID

Submitted by Cbgimse on Mon, 09/30/2019 - 22:47

Is this a CCM chainring? It came on an axle that looks circa 1918 but the bolted flange face is curved instead of straight



7 Comments

Submitted by jdwillia on Tue, 10/01/2019 - 09:58.

It looks something like a very early Cleveland chainring (pre 1910).

John Williamson

Submitted by Cbgimse on Tue, 10/01/2019 - 11:43.

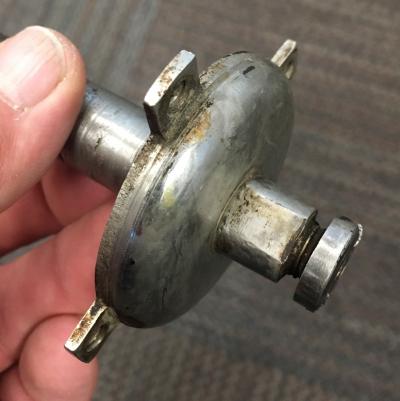

Thanks John, i saw a photo of a POPE made bike that had a chainring with the same ring of circles on the inside. Here is a picture of the axle with a curved face


Submitted by Brian R. on Tue, 10/01/2019 - 19:36.

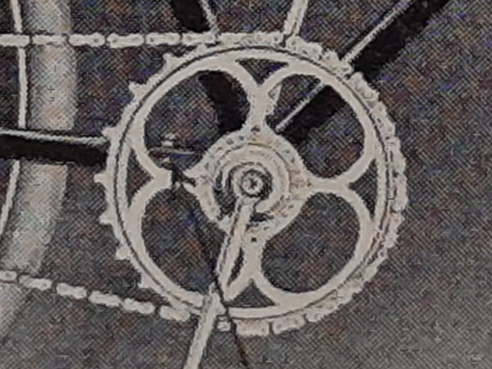

It looks like the one on the Cleveland 114 in the 1904 catalogue I posted in the catalogue forum. The resolution is not very clear in those photos so here is the same photo but zoomed-in and cropped:


Submitted by Cbgimse on Wed, 10/02/2019 - 00:34.

Thanks Brian, when I try to count the number of teeth on the chainring in the photo you posted I get 24.I wonder if it Is it actually a photo or a drawing?

Submitted by Ron Miller on Wed, 10/02/2019 - 09:07.

I have this identical bike as pictured in the 1904 catalogue although it is a Model 134.  That coul;d make it a couple of years newer.  it is a Cushion Frame Roadster.   The chainring is the same but the flange is flat not curved as in the above photo.     Serial; No.  233151.

Ron



Submitted by oldy57 on Wed, 10/02/2019 - 19:13.

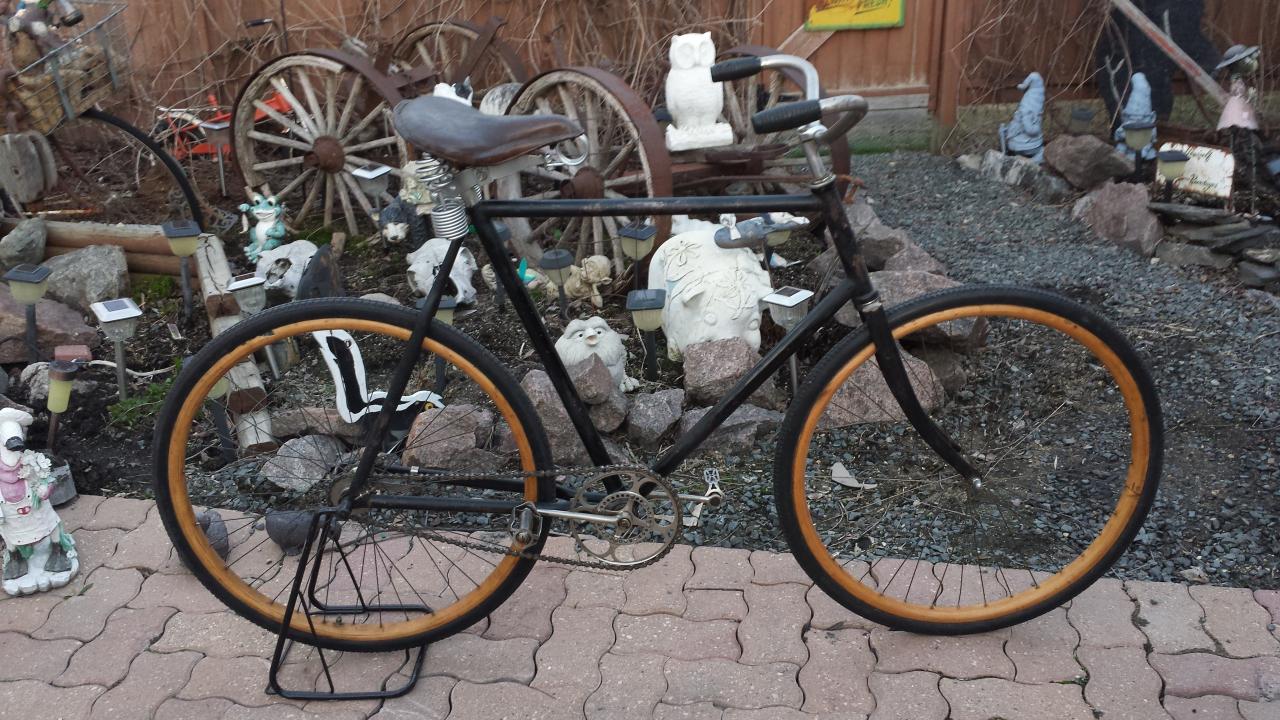

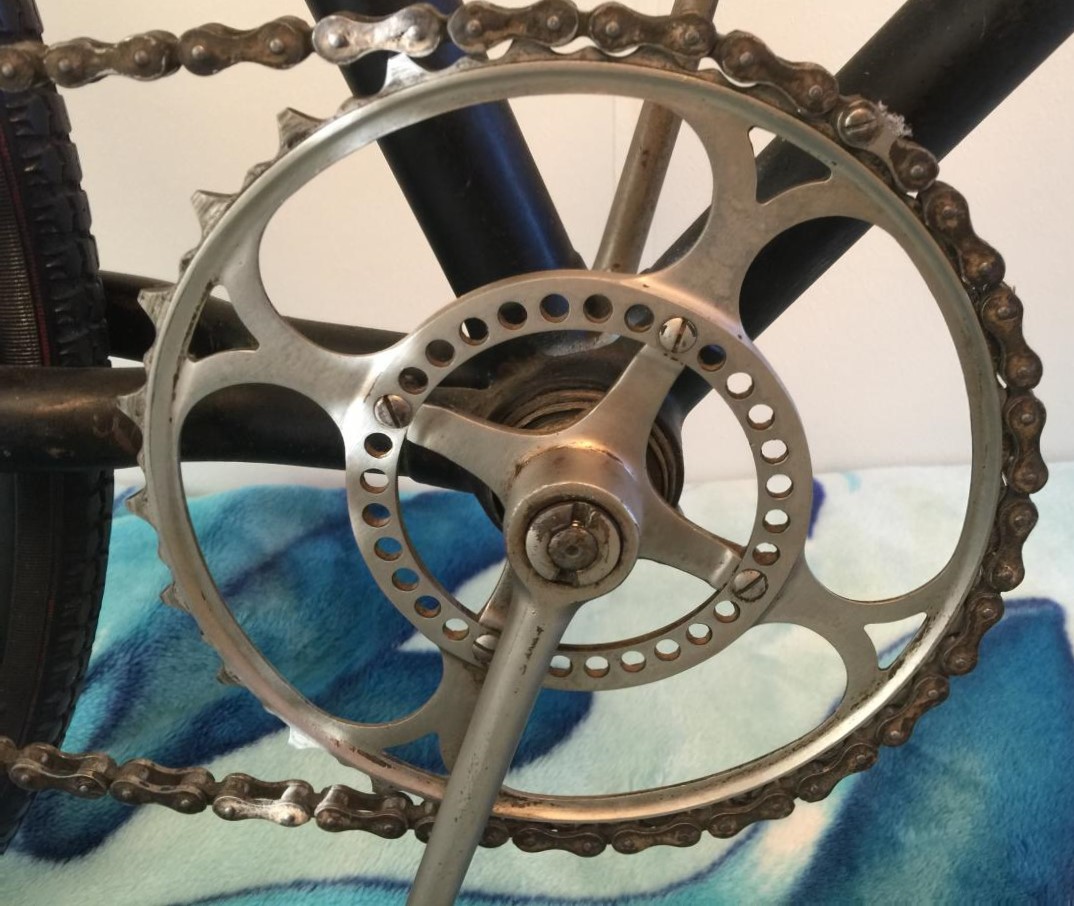

1898 Cleveland with same chainring.

img_0627.jpg 20150429_203623.jpg

Submitted by Cbgimse on Thu, 10/03/2019 - 02:34.

Thanks for the reply but I believe the 1898 Cleveland has some very minor differences. The number of holes between the bolts doesn't match and the "bean" shape appears much narrower. The tooth count is the same but I suspect the chainring bolt circle diameter was changed to match a later model axle.
